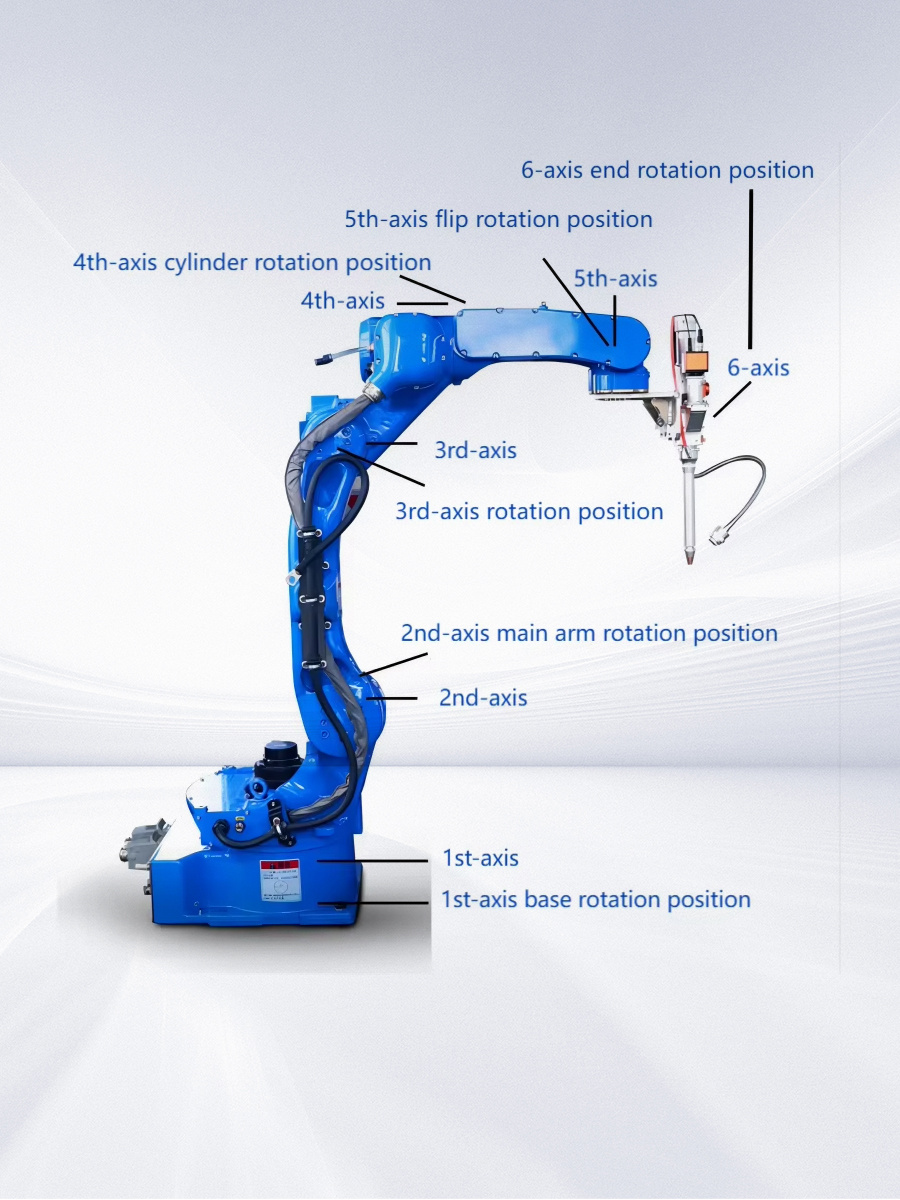

6 Axis Robot Arm Automatic Laser Welding Machine Six-axis robot laser welding machine is the most typical robot laser welding machine. It mainly consists of joints and connecting arms. The robotic arm and wrist cooperate to complete the target trajectory movement, and the space has 6 degrees of freedom. The six-axis robot consists of six joints: rotation (S axis), lower arm (L axis), upper arm (U axis), wrist rotation (R axis), wrist swing (B axis) and wrist rotation (T axis). The synthesis of 6 joints realizes 6 degrees of freedom movement at the end, which makes the 6-axis automatic robot have many advantages such as high flexibility, large load, and high positioning accuracy.

Classification :

Laser Welding Machine

+8617615858876

admin@yihaicnc.com

E-mail

Product Description

Laser welding uses a high-powered laser to generate energy. The laser beam is focused to a fine point, concentrating the heat on a small area. This heat melts the material and allows the materials to bond–creating a weld.

Laser power: 2000W/ 3000W/ 6000W
Laser source brand: BWT/ Raycus/ Max(optional)
Cooling system: Water cooling
Advantages:
1. Welding robot can work in harmful environment.
2. It can runs 24 hours, and greatly improve the production efficiency.
3. Stabilize and improve the welding quality of work pieces.
4. Reduced requirements for workers to operate skills.
5. Simple operation, convenient for users.
Product ParametersNoItemData
1ModelUL-120R
2Power380V/ 220V
3Axis6 axis robot ( 7axis, 8axis for option)
4Operating Environment Temperature Range15-35℃
5Robot Weight400kgs
6Rated output voltageMMA: 40V / TIG: 66V
7Motion RangeJ1 axis+-170 degree
8J2 axis-90 degree, +80 degree
9J3 axis-90 degree, +80 degreec
10J4 axis+-180 degree
11J5 axis-105 degree, +130 degreec
12J6 axis+-350 degree
13Auto Wire-feederIncluded
14Torch coolingAir/ Water
15Protection gradeIP23

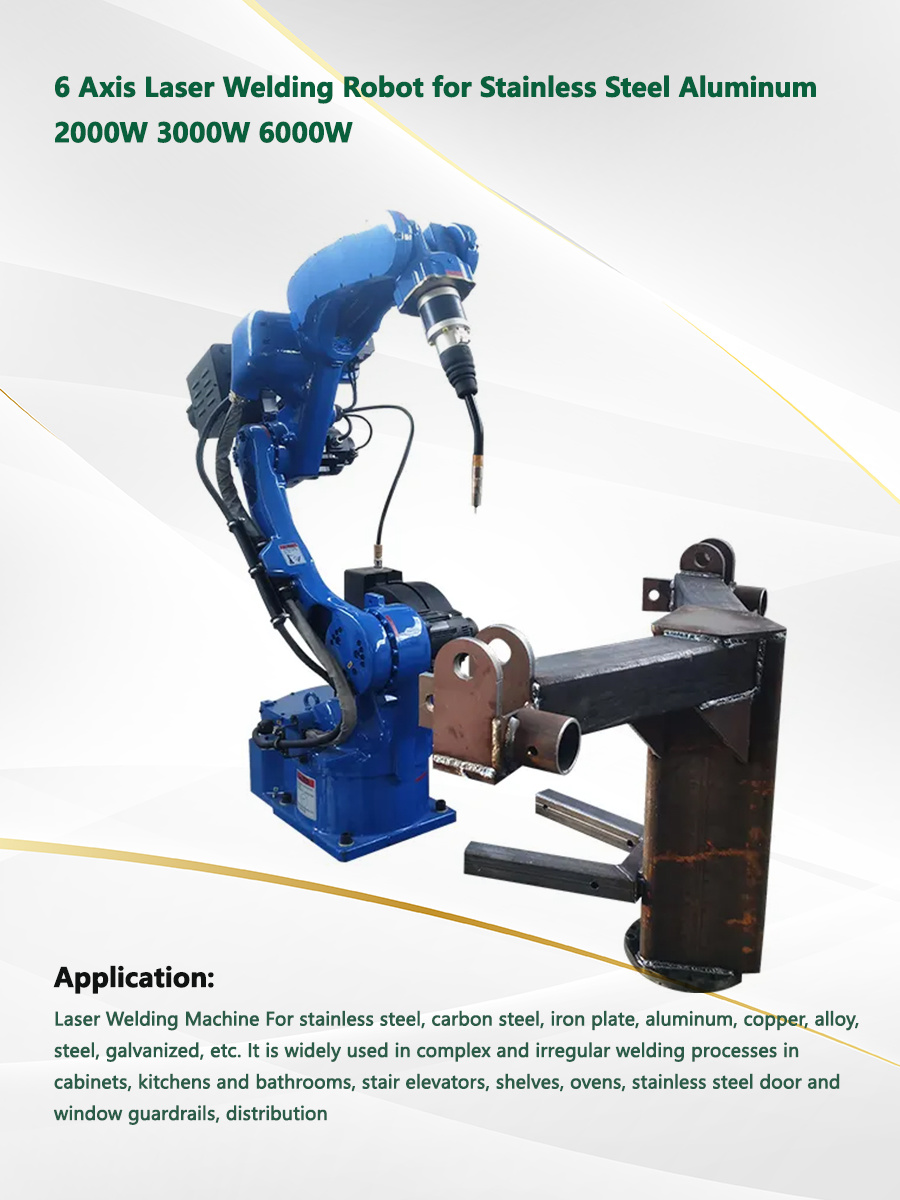

Product ConfigurationProduct ApplicationApplication: Applicable to stainless steel, carbon steel, iron plate, aluminum, copper, alloy, steel, galvanized, etc. It is widely used in complex and irregular welding processes in cabinets, kitchens and bathrooms, stair elevators, shelves, ovens, stainless steel door and window guardrails, distribution boxes, stainless steel home appliances and other industries.
About UsCompany Information.Jinan Yihai Laser Technology Co., Ltd. is a company specializing in the production and processing of CNC equipment, CNC cutting machines, plasma cutting machines, laser cutting machines, laser welding machines, laser cleaning machines, stone engraving machines, advertising engraving machines, woodworking engraving machines and other products.
The company is headquartered in Yihai CNC Equipment Manufacturing Factory, located in Licheng District, Jinan, Shandong Province, China, and has a complete and scientific quality management system. Jinan Yihai CNC Equipment Manufacturing Co., Ltd. has been recognized by the industry for its integrity, strength and product quality. Friends from all walks of life are welcome to visit Jinan Yihai CNC Equipment Manufacturing Co., Ltd. for visit, guidance and business negotiation. We provide a 3-year after-sales warranty and lifetime technical support. We have a professional technical team to provide you with services, making you hassle-free after-sales.

FAQ

Q: What about the leadtime?

A: For laser welding, claning, and marking machine, leadtime 3-5 working days. For laser cutting machine, leadtime 10-15 working days.

Q: Do you have after sales support?

A: Yes, we are happy to give advice and we also have skilled technicians available across the world, We need your machines running in order to keep your business running.

Q: How about warranty?

A: 3 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge(some parts will be maintained) when if any problem during the warranty period.

Q: Do you have CE document and other documents for customs clearance?

A: Yes, we have CE, Provide you with a one-stop service.At first we will show you and and after shipment we will give you CE/Packing list/Commercial Invoice/ Sales contract for customs clearance.
